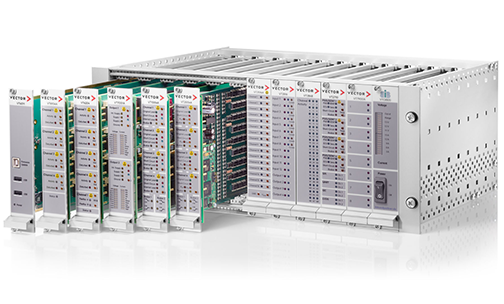

VT System

When performing functional testing, the ECU must be tested in a test environment that is consistent with the actual operating environment. When the actual environment is not ready or the cost is too high, in order to thoroughly test the ECU, the R&D team not only needs to connect the communication network to the test system, but also needs to prepare the I/O interfaces required for the system to connect. This task will be performed by the VT System. The VT System integrates all the circuit components required for connecting I/O channels into a single module, such as the I/O channels needed for the ECU output controlling the headlights or the input connecting to the brightness sensor. The ECU's I/O lines are connected to the modular VT System, and when necessary, connected to the original sensors and actuators. A PC with CANoe is connected via an Ethernet-based high-speed real-time network port. This enables the easy construction of flexible test systems without any integration or wiring work, significantly simplifying the setup of test benches and HIL test systems. Using VT System hardware modules and CANoe, vTESTstudio software, users can assemble systems for functional testing of ECUs, vehicle networks, avionics, and industrial control systems. The modular design of the VT System allows for the creation of test solutions ranging from simple test setups to complex test systems:


• Dedicated test systems for each ECU

• General functional test equipment for ECUs and subsystems

• Flexible test hardware for developer workstations


Core Values

  • Providing hardware-in-the-loop (HIL) testing environment

  • Thoroughly verify the product's functionality before launching it in a real-world testing environment

  • Shortening the product launch cycle

  • Save on the cost of preparing a real test environment

  • Improve the efficiency of overall project development testing

  • Easily execute, reuse, and manage regression testing for functional testing

Advantages and Highlights

  • Highly integrated, each model includes the main hardware modules required for testing

  • Includes measurement hardware with signal conditioning

  • Includes electronic loads for actuator simulation

  • The VT System is based on a modular design, making it easy to select the appropriate configuration as needed

  • Minimize the wiring work required for test setup

  • Voltage range suitable for various applications such as automobiles and aviation

  • Seamless integration into CANoe and vTESTstudio

  • The VT System integrates all relevant test components into a single device

  • Includes relays, such as those used for switching short circuits.

  • Decimal resistor with analog sensor

  • VT System is highly scalable and easy to expand or modify

  • Open interfaces support multiple protocols

  • VT System provides standard or customized test benches

Modular Test Bench

  • Chassis

  • Back panel

  • Chassis

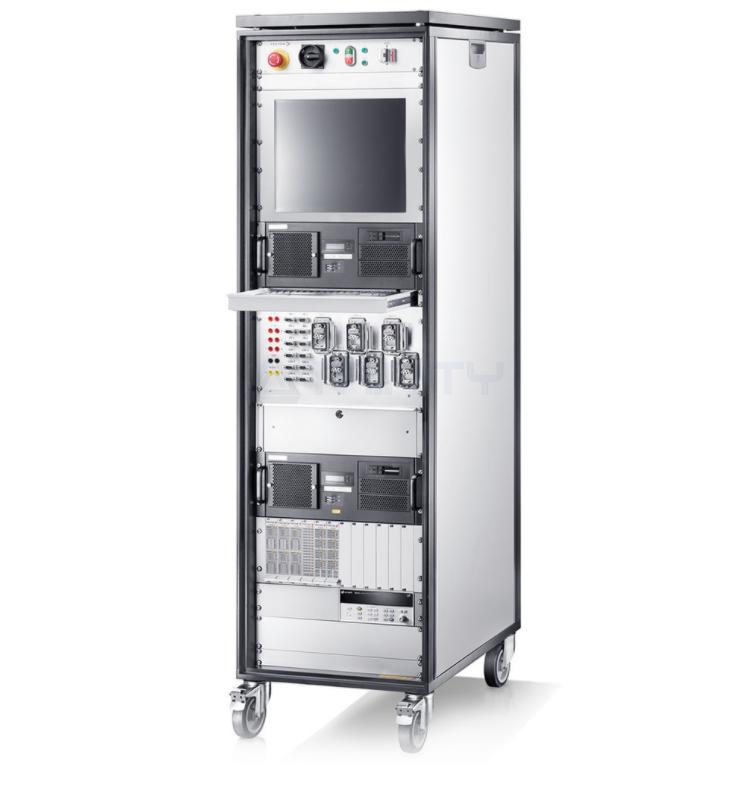

    The VT System offers high scalability. It can be used to build complex, feature-rich test systems: from small auxiliary test tools on developer workstations to comprehensive functional testers and HIL test stations in test laboratories. Since the modules of the VT System are designed to be universal, the test system can be easily adapted to different test objects and test tasks. To meet diverse requirements, the VT System offers a range of solutions, including 9.5-inch desktop enclosures, 19-inch desktop enclosures, 19-inch system enclosures, and HIL custom cabinets.

  • Back panel

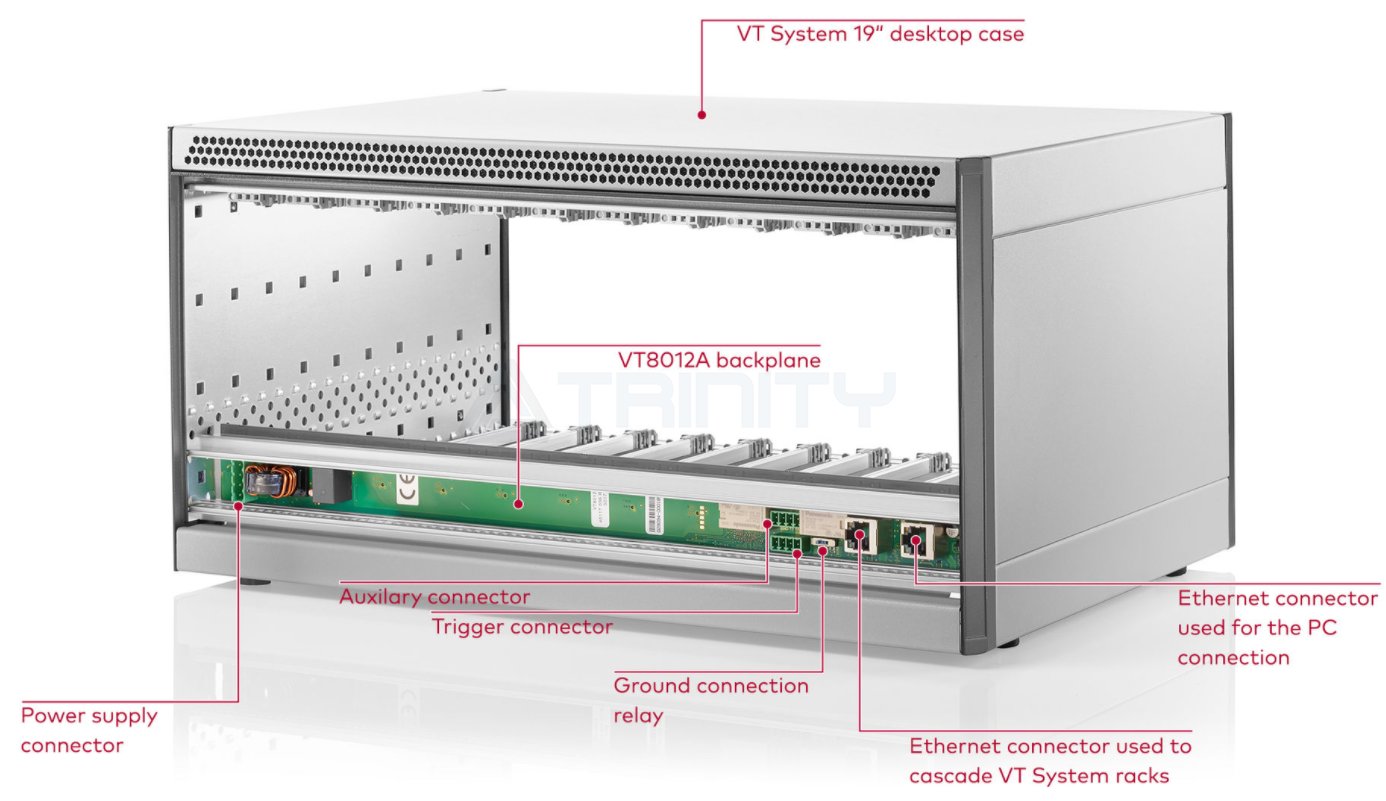

    The backplane of the VT System occupies the lower quarter of the chassis height. In the space above, the plug-in modules of the VT System can be accessed directly from the rear. The backplane provides an Ethernet connection for the CANoe PC and a 12V operating voltage for the VT System modules. Each installed VT System module can also be connected to the EtherCat bus via the backplane. Using a second Ethernet connector, multiple VT System racks can be connected to a larger test system.


Module Composition

Measurement + Simulation Module


VT1004A | VT1004A FPGA

Load and measurement module(40 V)

VT1104

Load and measurement module(60 V)

VT2816 | VT2816 FPGA

General-purpose analog I/O module

VT2848 | VT2848 FPGA

General-Purpose Digital I/O Modules

Motivational module


VT2004A | VT2004A FPGA

Motivational module

VT2516A | VT2516A FPGA

Digital module

VT7820

Rotary sensor module

VT2816 | VT2816 FPGA

General-purpose analog I/O module

VT2848 | VT2848 FPGA

General-purpose digital I/O module

Network interface module


VT2710

Serial Interface Module

VT6104A

Network interface module

VT6204

network interface module(FlexRay)

VT6306

Ethernet network module

Power control module


VT7001A

Power module(40V)

VT7101

Power module(60V)

VTC8920B

VT System power module

Real-time module


VT6011

Real-time module

VT6051A

Real-time module

Fault injection + switching module


VT2820

General-purpose relay module

VT2832

Switch matrix module

Intelligent charging module


T7970

Intelligent charging communication test module

Infrastructure module


VT7900A | VT7900A FPGA

Extension module
